Videojet Laser Fume Extraction Systems and Filters
Fume extraction is an important element of any laser marking installation, helping to remove the smoke and particulate debris generated during the marking process. Fume extraction helps your operations by:
- Improving uptime by keeping your laser lens clean
- Maintaining safe operator working conditions
- Helping ensure product quality by keeping production lines clean
Videojet offers a range of fume extraction systems and filters to meet your production line needs.
- Videojet Xtract™ Lite
- Videojet Xtract™ Pro
- Videojet Xtract™ PVC
- Videojet Xtract™ Max
- Description
- Documents
Videojet Xtract™ Lite
A compact and competitively priced fume extraction system for light-duty laser marking, coding, and engraving applications
The entry-level Videojet Xtract Lite, ideal for low-cost and smaller laser marking systems, helps to maintain safe operator working conditions and product quality. Direct integration with a Videojet laser allows for a seamless start-up of the fume extractor.
The Videojet Xtract Lite combines a competitive total cost of ownership with performance. The system benefits from a three-stage filter condition indicator and three stage filtration: DeepPleat pre-filter, HEPA, and chemical section.
Standard features:
- DeepPleat pre-filter
- HEPA filter
- Advanced carbon filter technology (ACF)
- Filter condition indicator
- Filter change/system fail signal
- Long-life, low-cost replacement filters
- Small footprint
- Remote stop/start interface
- Low noise levels

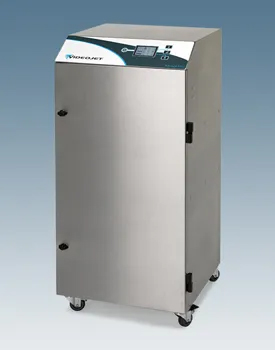

Videojet Xtract™ Pro
The premier choice and best-in-class solution with unique performance features in a compact unit
The high-performance Videojet Xtract Pro is our most technically advanced laser fume extractor.
Its award-winning operating system performs at two distinct levels. First, users benefit from ease of operation and clarity of real-time information. Second, the system provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation.
The operating system takes performance and safety parameters to a new level and helps ensure that maintenance downtime and ownership costs are kept to a minimum.
Standard features:
- DeepPleat DUO pre-filter
- Reverse flow filter technology
- Combined HEPA and gas filter
- Independent filter condition monitoring
- Advanced carbon filter technology (ACF)
- Filter status warnings
- Auto sensing voltage (90 V- 257 V) for global use
- Real-time airflow reading
- Remote diagnostics data accessed via USB
- Automatic flow control
- High-contrast display
- Run safe operation
- Optional interfacing
Videojet Xtract™ PVC
Ideal fume extraction solution for laser marking, coding, and engraving of PVC materials
The Videojet Xtract PVC extraction system has been designed to effectively deal with the corrosive nature of the fumes generated when lasering PVC materials.
The system offers many of the features of our best-in-class Videojet Xtract Pro model and adds a coating to all internally exposed surfaces to resist the corrosive nature of PVC fumes. Also, each unit is fitted with HCL and VOC sensors to continually monitor the unit’s exhaust air and provide added safety assurance.
Standard features:
- Award-winning operating system
- Reverse flow filter technology
- HEPA filter
- Filter status warnings
- Filter change/system fail signal
- Easi-seal filter location mechanism
- Independent filter condition monitoring
- Turbine with high airflow and pressure
- HCL and VOC gas sensors
- Compact design
- Low noise levels
- Real-time airflow reading
- Remote diagnostics data accessed via USB
- UL tested
- cUL tested
- Auto-sensing voltage (90 V- 257 V)
- Automatic flow control
- Acid resistant coatings
- ACF technology
- High-contrast display
- Run safe operation
- Remote stop/start interface

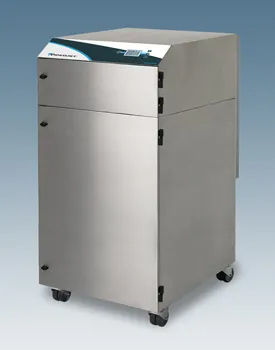

Videojet Xtract™ Max
High-performance laser fume extraction system for heavy-duty use in laser marking, coding, and engraving
The Videojet Xtract Max high-end laser extraction system combines an extremely large filter capacity with high airflow and pressure rates, making it the ideal choice for heavy-duty applications that generate substantial amounts of particulate and gaseous organic compounds.
Performance is enhanced with the patented DeepPleat DUO pre-filter and the acclaimed operating system. They combine to offer high levels of performance and safety and to help ensure that maintenance, downtime, and ownership costs are kept to a minimum.
Standard features:
- Award-winning operating system
- Patented DeepPleat DUO pre-filter
- Reverse flow air filter technology
- Combined HEPA/gas filter incorporating ACF technology
- Filter change/system fail signal
- Independent filter condition monitoring, display, and warnings
- Filters with long life and low replacement costs
- Automatic flow control system
- High-contrast display
- Remote diagnostics via USB
- UL tested
- cUL tested
- High airflow and pressure rates
- Real-time airflow reading
- Run safe operation
- Remote stop/start interface
- Interfacing with host laser

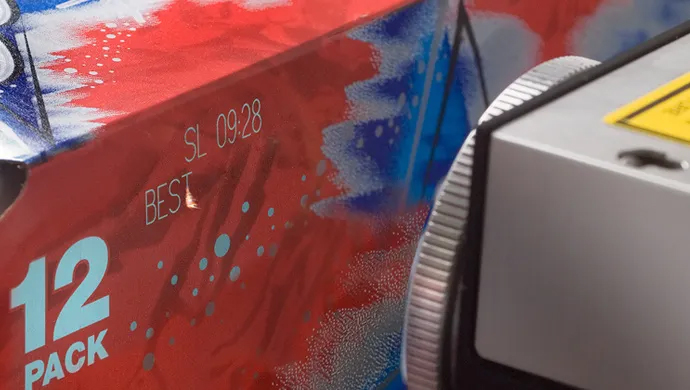

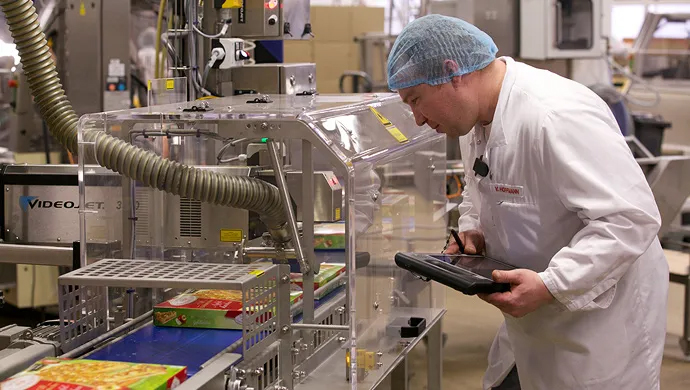

Whether you are using CO2, fiber, or UV technology, a complete laser marking system requires safety features including beam shields and fume extractors. Fume extraction not only prevents operators’ exposure to harmful fumes, smoke, and particulate debris generated during the marking process, but it also helps keep the laser’s lens clear and ensure code quality by keeping production lines clean.
The Videojet Xtract™ laser fume extractors feature filters with 99.997% efficiency for particles 0.3 microns in size and 95% efficiency for particles 0.1 microns in size. Each fume extractor is engineered to meet safety requirements, improve uptime, and help your operations by:
- Clearing your laser lens of smoke and particulate debris
- Keeping your production area clean
- Helping to create safe a safe and odor-free working environment
Key features of various Xtract fume extractors include an award-winning operating system, HEPA filter technology, a filter condition indicator, and an automatic flow control system. Depending on the substrate, amount of smoke and debris, type of ablation or engraving, and usage, Videojet has a fume extractor to suit your operation. Contact us to learn more and get a free consultation.
