Videojet 9560 PL pallet labeling system
- The Videojet 9560 PL is a reliable, automated pallet labeling system that reduces warehouse costs and mistakes
- Fully automated, it is specifically engineered to function in demanding conditions
- The 9560 PL can cover two or three sides and up to four labels, processing up to 120 pallets per hour across diverse applications
- To help ensure error-free operations, the system verifies label accuracy and reprints incorrect labels as needed
- The 9560 PL also interfaces with warehouse management systems and helps customers adhere to industry regulations
Videojet 9560 PL pallet labeling system
Pallet labeling to suit your application

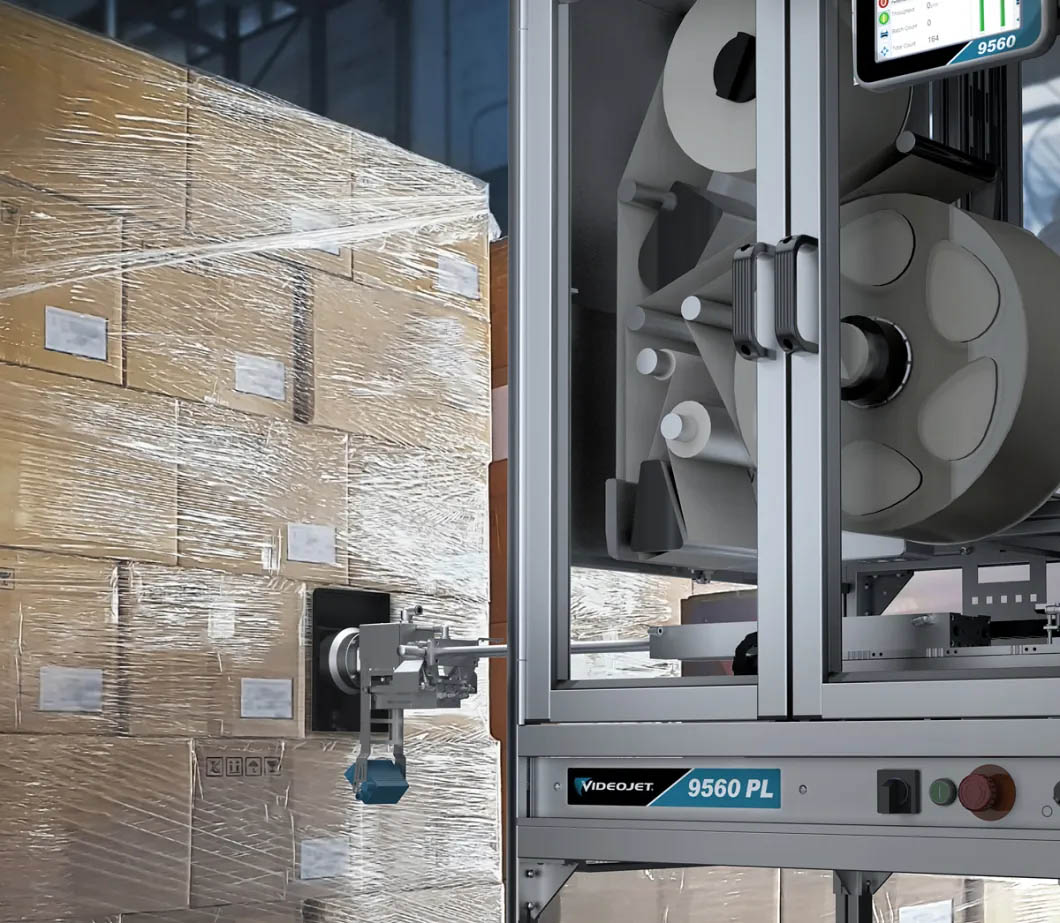

- Rotating tamp pad with wrist joint provides firm label adhesion of up to four labels per pallet

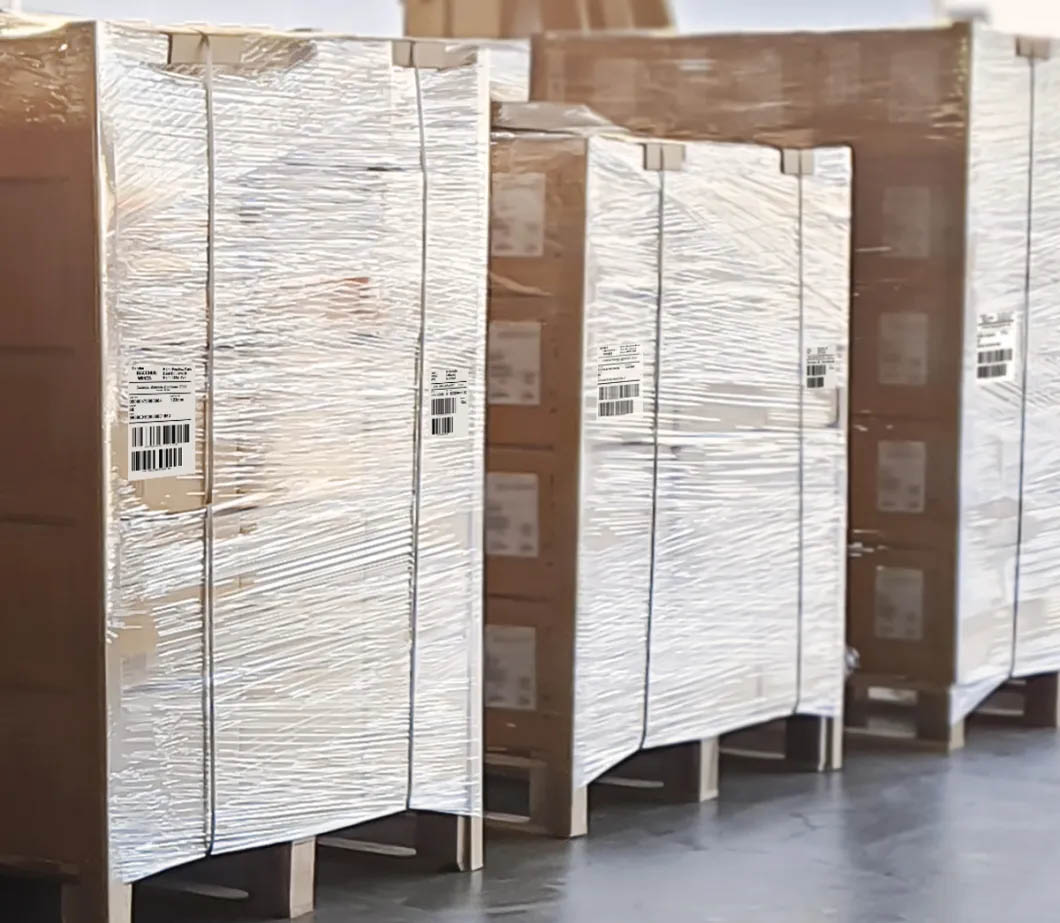

- Label placement on up to three sides of the pallet helps you avoid logistic hold-ups
- Graphical User Interface helps to minimize errors and aids with troubleshooting, while onboard videos help to simplify staff training

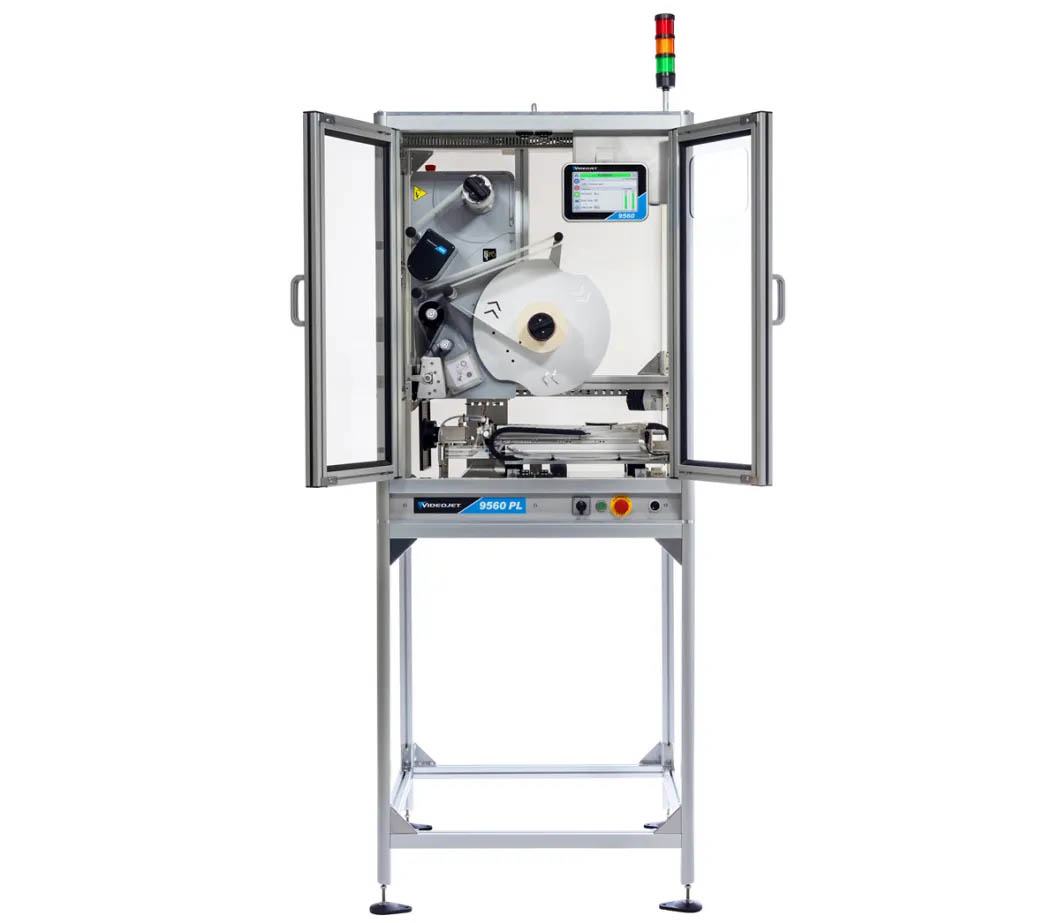

- A fully enclosed climate-controlled cabinet helps protects labels from harsh environmental conditions, reducing label warping, deformation, and weak adhesion
- Thermal transfer labeling does not change color when exposed to sunlight, and can apply identical labels on up to three sides in compliance with GS1 specifications
A rugged and refined design

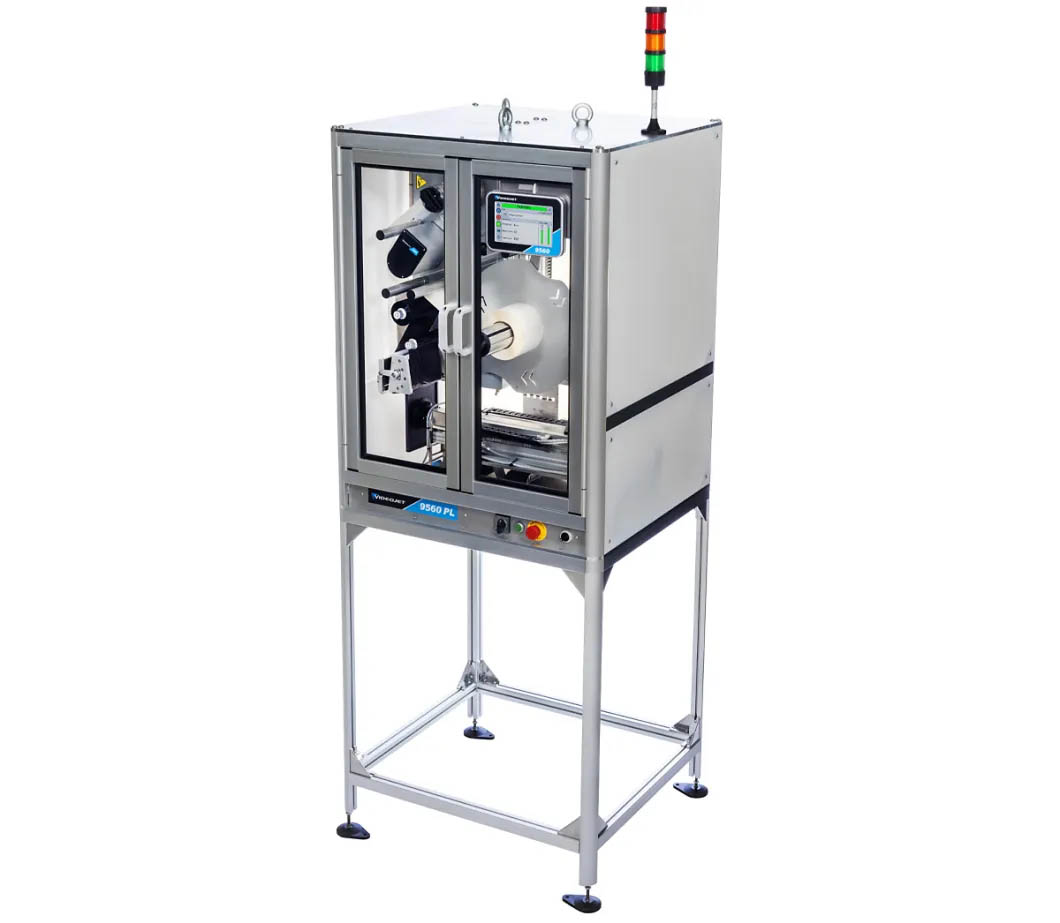

- Resilient construction and industry-low footprint mean you can put the 9560 PL almost anywhere

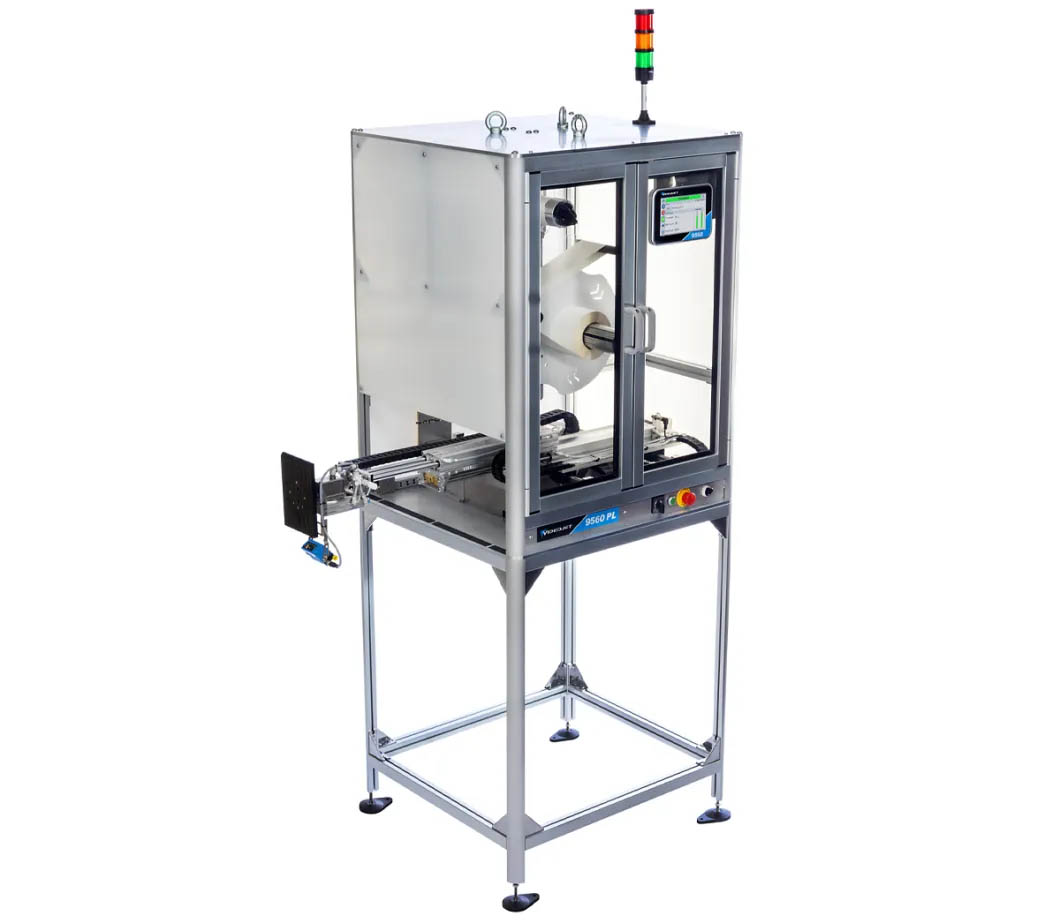

- Three stand height options add flexibility, with a labeling arm that extends up to 700mm beyond the enclosure, and label applicator that
swivels 90o - An integrated bar code scanner checks for label errors, ensures readability, and validates codes
A reliable, next-level solution
- The advanced rotating tamp pad automatically corrects no-read labels caused by dead dots, reducing errors and downtime
- Intelligent Motion™ clutchless, adjustment-free technology enables precise control of all the design elements of the machine
- Label and ribbon replacements can be performed quickly, helping to avoid downtime and lowering the cost of operation
Connectivity-ready for seamless integration
- The 9560 PL offers intelligent I/O capabilities including EtherNet/IP™, PROFINET®, Zebra, and SATO protocols
- VideojetConnect™ software solutions help ensure data integrity, central code management, and easy printer connection across the entire plant
- Industry-leading CLARiTY touchscreen interface delivers intuitive job selection, code assurance, and built-in productivity tools
- VideojetConnect™ Remote Service* provides real-time information on printer issues, helping to monitor equipment status, troubleshoot issues, and improve long-term performance
- Web server capability allows customers to access the 9560 PL via supported web browsers on host computers, with up to five web server sessions per printer
- Available Wi-FI connectivity
*Subject to availability in your country
Supports your sustainability objectives
- Videojet’s comprehensive labeling solutions help you to reduce your environmental impact and optimize your supply chain while maintaining the highest levels of efficiency and reliability
- Intelligent Motion technology eliminates manual adjustments, increasing the overall equipment effectiveness of your line
- The Videojet labeling portfolio provides a range of sustainable labeling options to help you meet constantly evolving regulatory and sustainability requirements
Simple user experience
- Easy-to-navigate user interface with WYSIWYG job print preview
- Self-help onboard videos
| Specification | Value |
| Label Application Method | Telescopic tamp |
| Print Technology | Thermal transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal 160mm printhead |
| Ribbon | Width: 5.9 – 6.5” (150 – 165mm) Capacity: Up to 500m, including automatic ribbon save (< 1mm ribbon gap between successive prints irrespective of label size or speed) |
| Print Resolution | 300dpi (200dpi in emulation mode) |
| Print Speed | Up to 15.7in/sec (400mm/sec); speed is dependent on the application |
| Throughput | Up to 120 pallets per hour, based on two labels per pallet |
| Emulations | Zebra (ZPL), Sato (SBPL) and Markem-Imaje (Cimcomms) protocol support |
| Label Width/Length/Capacity | Width/length: 5.9 to 6 .9” / 4.0 to 8.3” (150 to 175mm / 100 to 210mm); A5/A6 Capacity: Up to 330mm spool diameter |
| Interface | CLARiTYTM Controller with interactive on-board video tutorials |
| Connectivity | Ethernet, Power-over-Ethernet, Configurable I/O (24V, PNP and volt free); 8 inputs and 6 outputs USB (for backup/restore and label upload), remote Control Videojet 9560 PL via a web browser |
| Certification | CE, TÜV |
